تستر دوربین مدار بسته

کپی آدرس این محصول

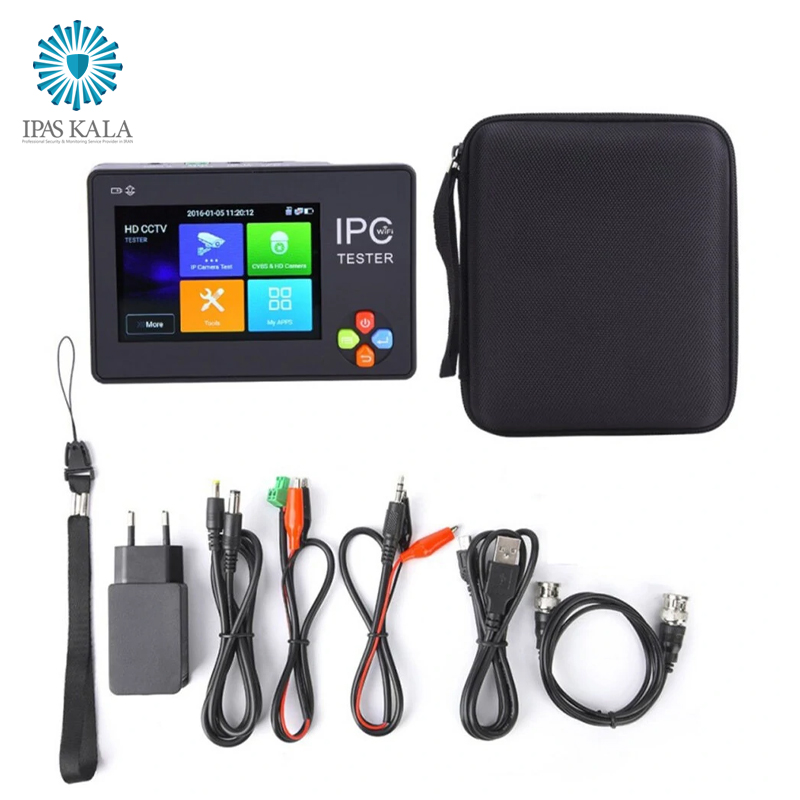

تستر دوربین مدار بسته

Model: IPC-1600 Plus
● Tester Play: Tester, mobile phone, PC display at the same time
  • وضعیت:
    ناموجود
  • قیمت:
    نامشخص

Camera test: ● 3.5 inch touch screen, 480*320 resolutions ● H.265 & H .264 IP, 4K video display via mainstream ● 8MP TVI test,3840 x 2160P 12.5/15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu ● 8MP AHD test, 3840 x 2160P 15 fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu ● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu ● Rapid ONVIF, Auto log in and display image, create testing report ● AXIS, Hikvision, Dahua and other camera test, enter ONVIF app, input username and password to test ● Install the Chrome browser, convenient to set AXIS, Hikvision and other camera parameters ● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera) ● Rapid video, just by one key to detect all network cameras and auto display ● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot ● DC 12V 1A power output ● CVBS camera test and PTZ control ● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable ● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator Other functions: ● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route ● Tester Play: Tester, android version mobile phone and PC display at the same time ● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc ● Self -update software, you can install apps with android version ● Media player, 4K video files and MKV/MP4 media files play ● Display its genuine resolution of the IP camera images ● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools ● 3.7 V /3500mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 8 hours



LCD

Item series

                                  IPC-1600 Plus

Display

New 3.5 inch wide angle touch screen ,480*320 resolution

  Video Mode

     CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

Coaxial HD test8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
8MP CVI camera test: 3840 x 2160P 12.5/15 FPS,UTC control /call OSD menu
8MP AHD camera test: 3840 x 2160P 15 FPS, UTC control /call OSD menu

IP camera test

4k/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool

Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time ,converter test from analog to digital with dual test window



Zoom Image



4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Network Port

10/100/1000M auto adapt, RJ45

Power output

12V/1A power output

DC 121A power output, supply temporarily power for the camera

TesterPlay

screen projectiontester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor , DHCP server, port flashing , Ping test

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling devicealso can send hexadecimal

Drop-down menu

You can select CVBS ,IP setting, LAN info etc in any interface

External power supply

DC 5V 2A

Battery

Built-in 3.7V Lithium polymer battery ,3500mAh

Rechargeable

After charging 3-4 hours, normal working time 8 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10---+50

Working Humidity

30%-90%

Dimension/Weight

115mm x 75mm x 33mm / 300g

The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us.
