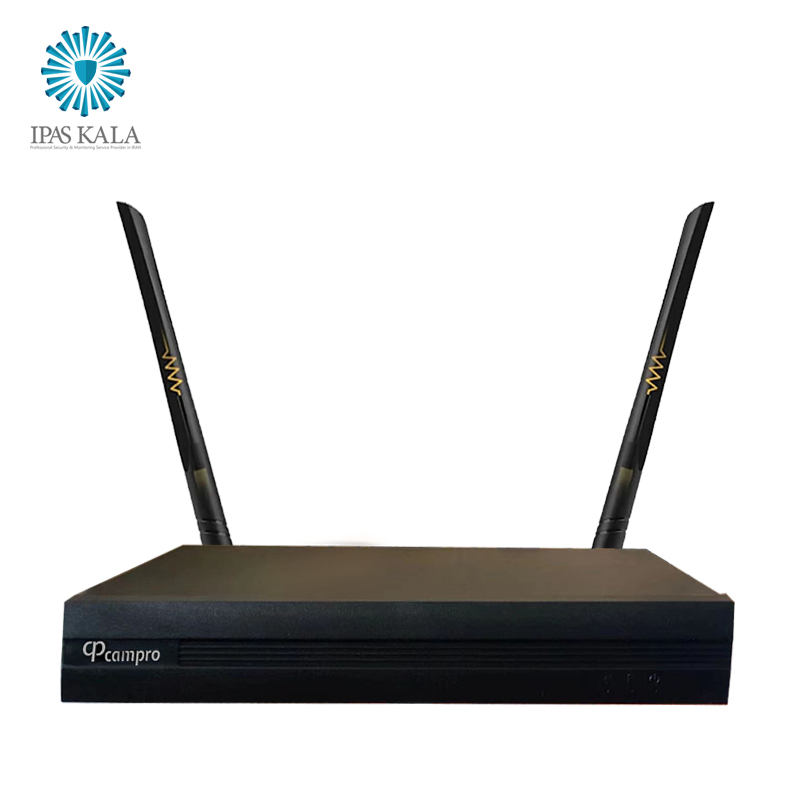

دی وی ار 8 کانال + 4 کانال تحت شبکه و مودم 4G داخلی

کپی آدرس این محصول

دی وی ار 8 کانال + 4 کانال تحت شبکه و مودم 4G داخلی

سریال : XR1284MW-4G
'گارانتی : 1سال وگاسرویس
  • کد محصول:
    5586
  • وضعیت:
    موجود
  • قیمت:
    4,905,000 تومان
  • خرید:


دی وی ار 8 کانال کمپرو دارای قابلیت پشتیبانی از 8 کانال AHD و 4 کانال تحت شبکه به صورت همزمان است که دارای مودم 4G داخلی میباشد

Feature

Support H.265+ encoding, ultra-low bitrates, compatible
with H.264 surroundings
Support VGA, HDMI full HD output simultaneously
Support ONVIF; access third party
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
Support web, VMS, center platform management software MYEYE, provide SDK development
Support various mobile monitoring (iPhone, Android)
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals
Support intelligent analysis: Human detection, face detection,Vehicle shape detection,VIOT,coaxial audio;


Specification

Model
System Main processor NT98331
Interface Preview 1/4/8/9
Video Codec H.265+
Monitor quality VGA(1080P at most);HDMI(2K at most)
Preview ability 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps6 in 1/
8*1080P@15fps
XVI), default:5M-N
Encode ability 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps6 in 1/
8*1080P@15fps
XVI), default:5M-N
Decode ability 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps6 in 1/
8*1080P@15fps
XVI), default:5M-N
Multi-mode
input
Analog8*5M-N
hybrid
8*5M-Nanalog+4*1080Pnetwork
Network16*1080P8*5M
Motion DetectionEach screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set
(Limited local channel)
Audio Audio compression G.711A
Intercom support
Record &
playback
Record mode manual>alarm>motion detection>timing
Local Playback 4ch(analog input mode)
Search mode Search by time, calendar, event, channel
Storage &
backup
Video storage HDD, network
Backup mode Network, USB hard disk, USB burner, SATA burner
External
Interface
Video input 8ch BNC
Video output 1ch VGA, 1ch HDMI
Loop Vout N/A
Audio I/O 4/1
Alarm I/O 0/0
Network interface RJ45 10M/100M self-adaption
PTZ control Support kinds of PTZ protocols

AHB80N08T-LME-V3

USB 2* USB 2.0 ports
HDD
Wireless 3G, WIFI (extend via USB)
General Power supply 12V/2A
Power Consumption <15W (without HDD)
Working environment Temperature:0℃—+55℃, Humidity:10%90%Atm:86kpa106kpa
Dimension
Weight 155g

2*SATA ports (Max 6TB/per)
201mm*70mm
