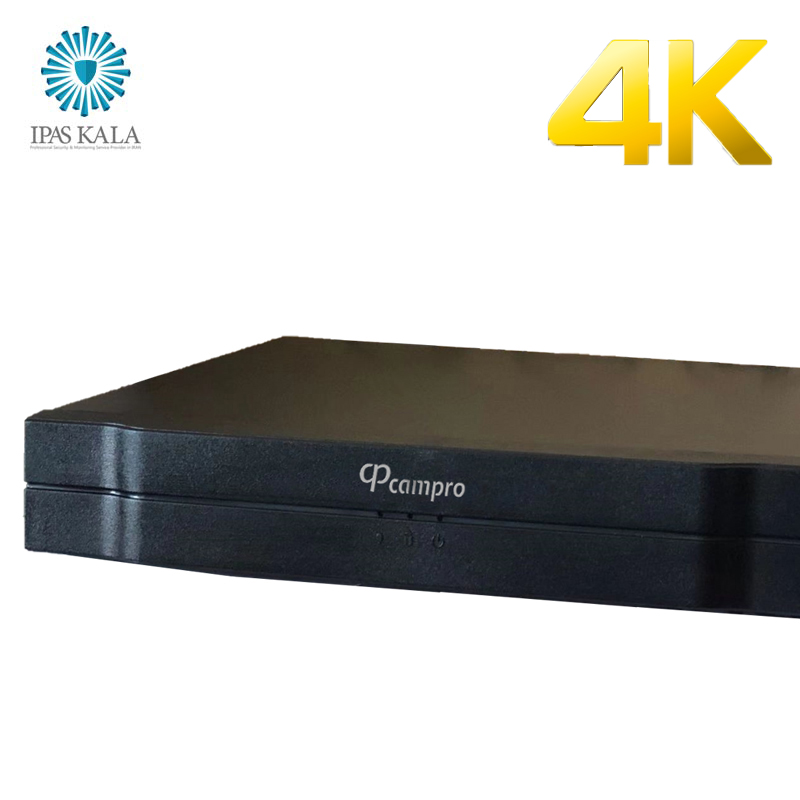

NVR 16CH 4k XM Orginal

کپی آدرس این محصول

NVR 16CH 4k XM Orginal

سریال : NR2116K
Video input (IP) : 16*4K( Access bandwidth 60Mbps)
Video compression : H.265AI/H.265+(compatible H.265/H.264)
گارانتی : یک سال وگاسرویس
  • کد محصول:
  • وضعیت:
  • قیمت:
    3,280,000 تومان
  • خرید:

ان وی ار 16 کانال 4K دارای برد ارجینال


Support access of multiple XM smart front-end devices
with human detection and face detection function.
Support HDMI 4K,VGA 1080P HD output;
Support ONVIF;access third party;
Support web, CMS, center platform management
software MYEYE, provide SDK development;
Support multiple cloud technology, network penetration,
alarm information pushed to your phone and other
Support multiple network services (support DHCP, FTP,
DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center,
Support GB28181 protocol access tothird-party platforms.
Model NBD88X16S-KL-V3
SystemMain processor XM8536E
Operating System Embedded Linux
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
InterfaceOperator interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/2/4/6/8/9/16
VideoVideo input (IP) 16*4KAccess bandwidth 60Mbps
Video compression H.265AI/H.265+(compatible H.265/H.264)
Display quality Max:4K
Playback quality 4K/5M/4M/3M/1080P
Decode 1ch4k/2ch5M/2ch4M/3ch3M/5ch1080P
VR support
human shape / Face Support(depend on camera)
AudioAudio compression G.711A
Intercom support
Recording mode Manual>Alarm>Dynamic Detection>Timing
Local payback 1ch4k/2ch5M/2ch4M/3ch3M/5ch1080P
Search mode Search by Time/Calendar/Event/Channel/Face
Record storage HDDNetwork
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Video output 1ch VGA1ch HDMI HD output
Audio I/O 1/13.5mm
Alarm I/O 0/0
Network interface 1*RJ45 10M/100M Adaptive Ethernet port
USB interface 2*USB2.0 ports(one USB extension interface is reserved)
HDD 1* SATA(Up to 14TB for each disk)
Serial interface No
OtherONVIF Support
Power supply 12V/2A
Power Consumption <10W(Without HDD)
Work environment Temperature:0℃ - 55, Humidity:10%90%RH , Atm:86kpa106kp
Dimension 118mm*46mm
Weight A total of about 63g
